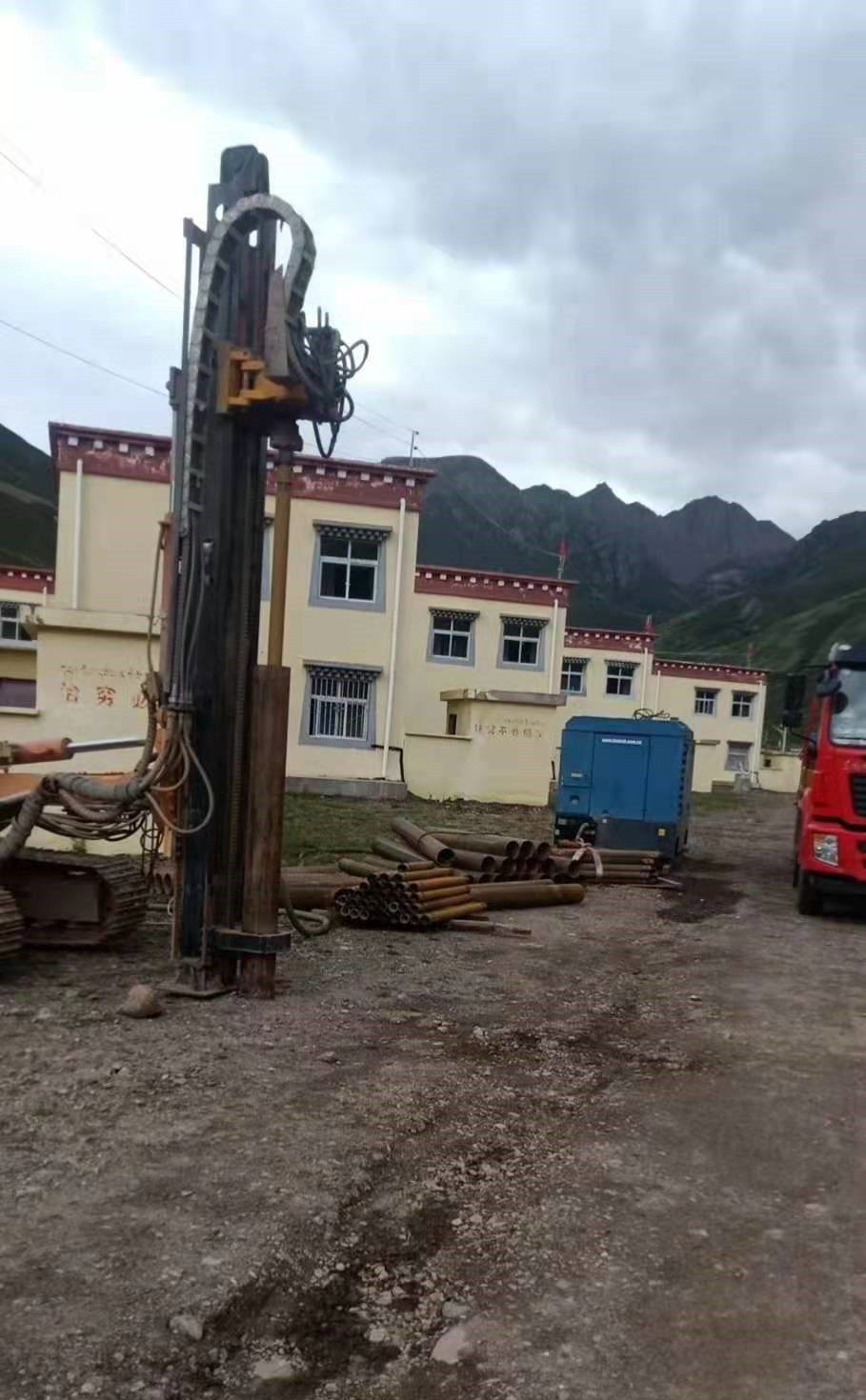

Anwendung: bohrer löcher, core bohren, strahlen, schnarchen, hämmern, stampfen, pumpen, sägen, nieten, pneumatische pumpen
Empfohlen modelle:
LUY130D-10,LUY120-12,LUY200-10,LUY220-8,LUY050-7
Arbeitsdruck: 7-14bar
Luftstrom reichweite: 5-22m3/min
Max. umgebungs temperatur: 50 °C (122 °F)
Modell | 050-7 | 120-12 | 165-13 | 200-10 | 230-14 | 290-9 |
Arbeitsdruck, bar | 7 | 12 | 13 | 10 | 14 | 8.6 |
Durchfluss (m3/min) | 5 | 12 | 16.5 | 20 | 23 | 29 |
Lärm (in 7m Entfernung, dBA ) | 70 ±3 | 83 ±3 | 87 | 83 ±3 | 79 ±3 | 79 ±3 |
Fassungsvermögen des Kraftstofftanks, l | 67 | 120 | 250 | 250 | 470 | 470 |
Kompressorölkapazität, l | 8 | 26 | 45 | 55 | 65 | 65 |
Marke des Motors | Kubota | YuChai | YuChai | YuChai | CUMMINS | CUMMINS |
Motormodell | V1505 T | YC4A160-H300 | YC6J190-T304 | YC6A240-H301 | QSL8.9-325-30 | QSL8.9-325-30 |
Motorleistung, Kw | 33 | 118 | 154 | 176 | 242 | 242 |
Normale Motordrehzahl, U/min | 2950 | 2200 | 2050 | 1950 | 2000 | 2000 |
Entladen Motordrehzahl, U / min | 1950 | 1400 | 1300 | 1200 | 1300 | 1300 |
Motor-Inspiration | Turbolader | Turbolader | Turbolader | Turbolader | Turbolader | Turbolader |
Abmessung, mm | 2960 x 1350 x 1420 | 2400 x 1800 x 2120 | 3000 x 2000 x 2190 | 4322 x 1950 x 2270 | 5260 x 1800 x 2630 | 5260 x 1800 x 2630 |
Gewicht (kg | 750 | 1560 | 2200 | 2685 | 4835 | 4835 |
