Anwendung: Polymermineralien, Kalkstein (Metallmineralien)
Empfohlene Modelle:
LUY160-17,LUY170-18,LUY180-19,LUY180-20,LUY190-20,LUY260D-21,LUY260D-25,LUY290D-21,LUY290D-25
Arbeitsdruck: 7-21bar (250-300psi)
Luftstrombereich: 16-29m3/min (564-1023cfm)
max. Umgebungstemperatur: 50 °C (122 °F)
Modell | 050-7 | 100-10 | 150-17 | 270-10 | 320-20 | 310-25 |
Arbeitsdruck, bar | 7 | 10 | 17 | 10 | 20 | 25 |
Durchfluss (m3/min) | 5 | 10 | fünfzehn | 27 | 32 | 31 |
Lärm (in 7m Entfernung, dBA ) | 70 ±3 | 81 ±3 | 87 | 79 ±3 | 83 ±3 | 82 ±3 |
Fassungsvermögen des Kraftstofftanks, l | 67 | 120 | 250 | 470 | 450 | 500 |
Kompressorölkapazität, l | 8 | 26 | 45 | 65 | 75 | 75 |

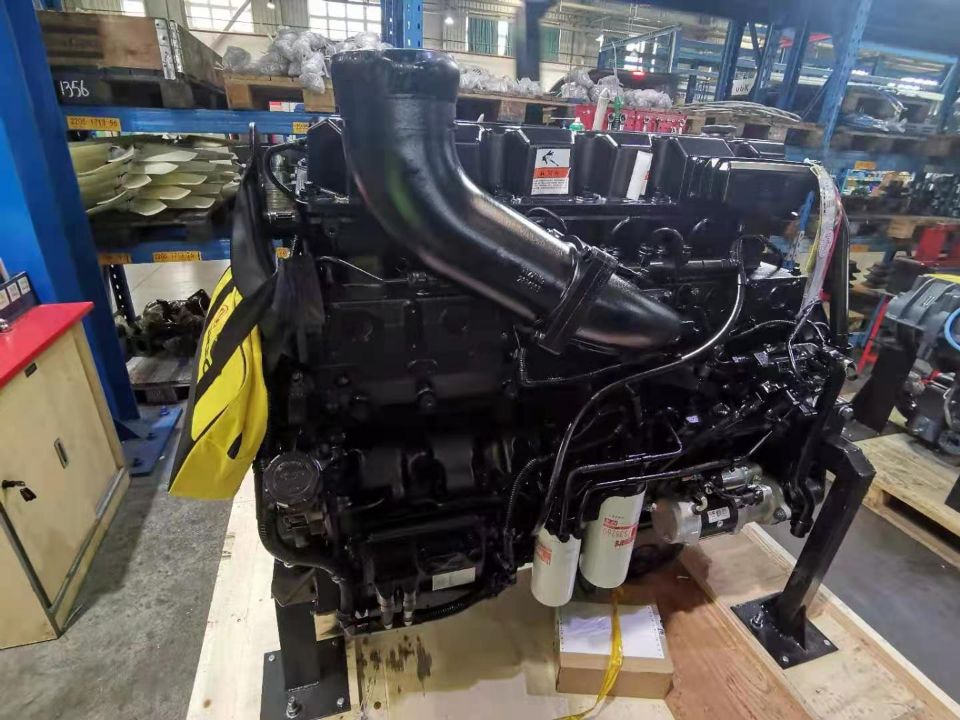

Marke des Motors | Kubota | YuChai | YuChai | CUMMINS | YuChai | YuChai |
Motormodell | V1505 T | YC4A130-H311 | YC6J190-T304 | QSL8.9-325-30 | 6MK340-H300 | 6MK340-H300 |
Motorleistung, Kw | 33 | 96 | 154 | 242 | 250 | 295 |
Normale Motordrehzahl, U/min | 2950 | 2300 | 2050 | 2000 | 1900 | 1900 |
Entladen Motordrehzahl, U / min | 1950 | 1400 | 1300 | 1300 | 1300 | 1300 |
Motor-Inspiration | Turbolader | Turbolader | Turbolader | Turbolader | Turbolader | Turbolader |
Abmessung, mm | 2960 x 1350 x 1420 | 3700 x 1790 x 1900 | 3000 x 2000 x 2190 | 5260 x 1800 x 2630 | 3850 x 2100 x 2690 | 5260 x 2040 x 2630 |
Gewicht (kg | 750 | 1650 | 2200 | 4835 | 4100 | 5150 |
